Exporter of Excavators and Parts - China Compact Excavator Manufacturer

Exporter of Excavators and Parts Chinese
Excavator C360 with CE

exporter of excavators and parts
china mining excavator mining excavator manufacturers


C360 Exporter of Excavators and Parts - Specifications    Basic Dimensions
Operate weight 33000 kg 72753 lbs Total length of track 4940 mm 195"
Bucket capacity 1.4 m3 Cabin height 3125 mm 123"
Engine model ISUZU 6BG1TRP-01 Upper structure width 3195 mm 126"
Engine power 184 kW 247 hp Undercarriage width 3190 mm 126"
Swing speed 10 rpm Overall height 3230 mm 127"
Ground pressure 65.3 Kpa Overall length 11150 mm 439"
Travel speed 5.0 / 3.1 km/h 3.1 / 1.9 mph Rear swing radius 3425 mm 135"
Arm digging force 259 kn Ground clearance 500 mm 20"
Gradeability 50° (70%) Clearance under counter weight 1220 mm 48"
Hydraulic tank capacity 260 L Track spacing 2590 mm 102"
Fuel tank capacity 630 L Tumblers distance 4050 mm 159"


 Additional Specifications  Working Range

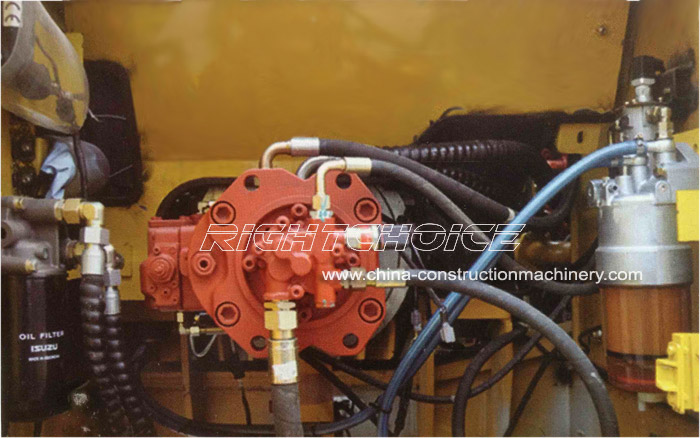

Japanese Kawasaki main pump Digging radius 1100 mm 43"

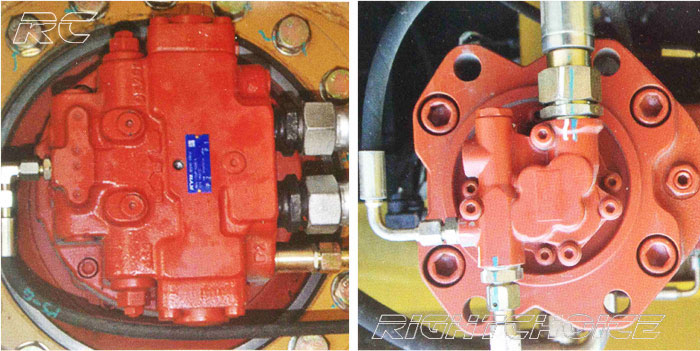

Japanese KYB valve, tracking motor Digging depth 7380 mm 291"
Japanese KYB tracking motor Digging height 100078 mm 3940"
Italian valve, pilot control lever Dumping height 7110 mm 280"
Loading roll over packing Vertical wall digging depth 6460 mm 254"

Min. Swing radius 4348 mm 171"

  Delivery time: 20 - 30 days
FOB: Qingdao, CHINA
  Guarantee: 12 months

C360 Excavator with CE - Features & Specifications

Exporter of Excavators and Parts - The C360 excavator is the biggest and most powerful of our excavators. With an operating weight of 36 tons and a 259 kn digging force, this machine has been developed to operate from large earthwork operations and construction sites to large-scale mining projects.

The C360’s has been designed to ensure both the cab driver’s safety and comfort. Selected international brands have been chosen for its hydraulic and power systems to maximize its performance. In order to increase the machine’s durability its boom, arm and platform have been additionally reinforced.

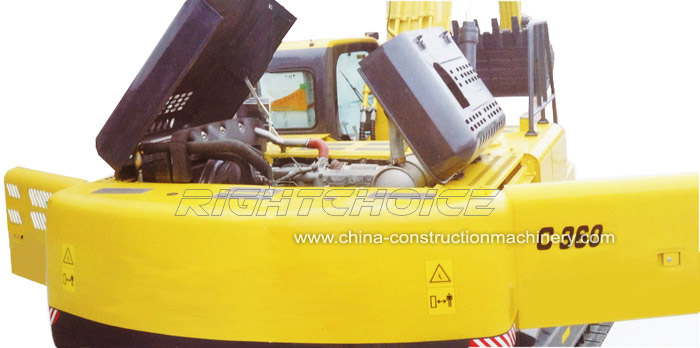

1. Engine - ISUZU 6BG1TRP-01

China Compact Excavator

To tackle the toughest of jobs the C360 excavator has a 184 kW power (2000 rpm) imported Isuzu engine. The ISUZU 6BG1TRP-01 engine is is one of the most powerful engine we use on our excavtors.

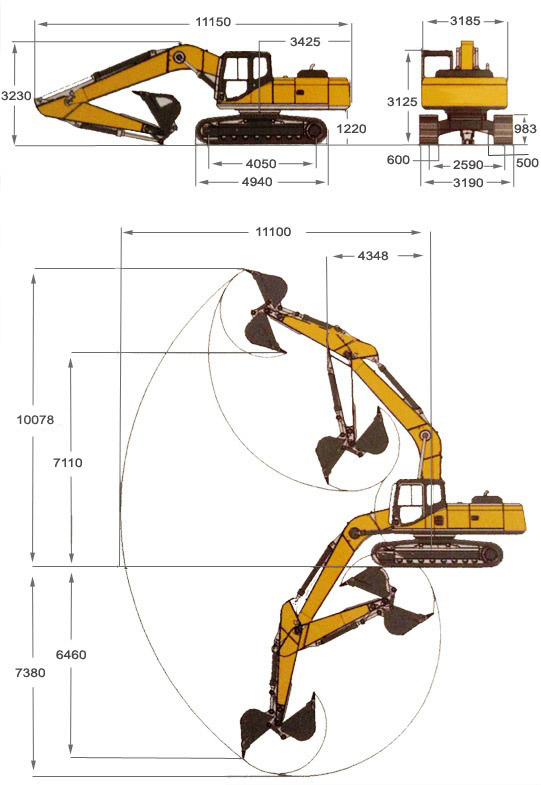

2. Dimensions

chinese excavator

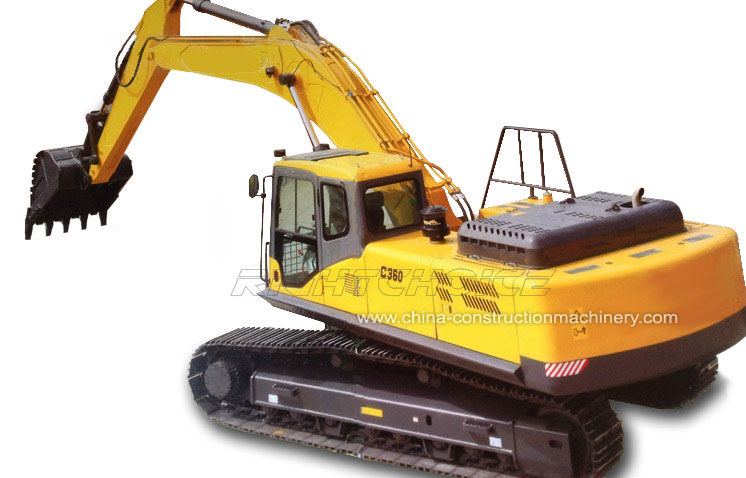

3. Photos

china excavator

excavators manufacturer companies

4. Loading

Nude package - Roller vessel. FOB: Qingdao, Shandong Province.
