| H150 China Compact Wheel Loader - Engine | Basic Dimensions | |||||
| Engine Options | Kubota D902 / ZONSEN GB750EFI | Length | 1910 mm | 75" | ||
| Max Power | 18.5 kW | 24.8 hp | Height | 1990 mm | 78" | |
| Speed | 3600 rpm | Width | 1031 mm | 41" | ||
| Max Torque | 56.1 Nm | 41.4 lb-ft | Tire Size | 23x8.5-12 | - | |
| Displacement | 900/750 cc | - | Ground clearance | 200 mm | 8" | |
| Cooling | Water/Air | Lifting height | 1400 mm | 55" | ||
| Steering angle | 45° | - | ||||
| Performance | ||||||
| Operating weight | 700 kg | 1543 lbs | Additional Specifications | |||
| Lifting capacity | 350 kg | 772 lbs | Operator's cab | Canopy | ||

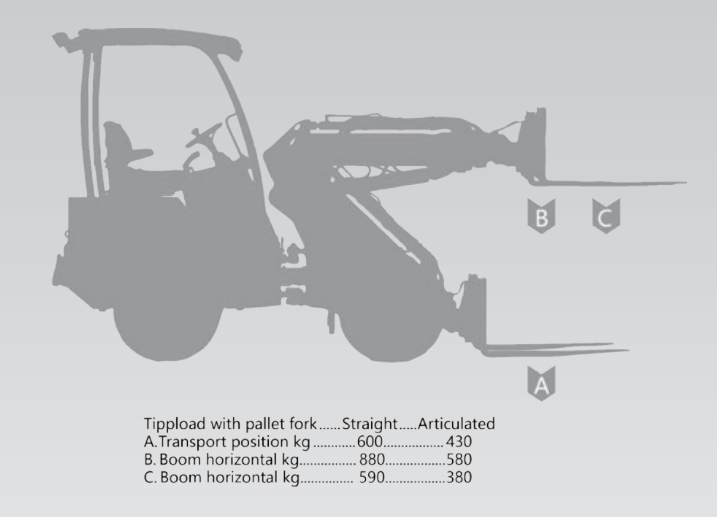

| Tipping load | 500 kg | 1102 lbs | Travel speed | 0-20 km/h | ||
| Hydraulic pressure | 200 bar | Transmission | Hydrostatic | |||
| Hydraulic flow | 40 l/min | Fuel capacity | 22 l | |||
| Delivery time: 15 - 25 days | FOB Qingdao, CHINA | Minimum Order: 1 unit | ||||
| Guarantee: 12 months | PRICE: Get an exact quotation | |||||

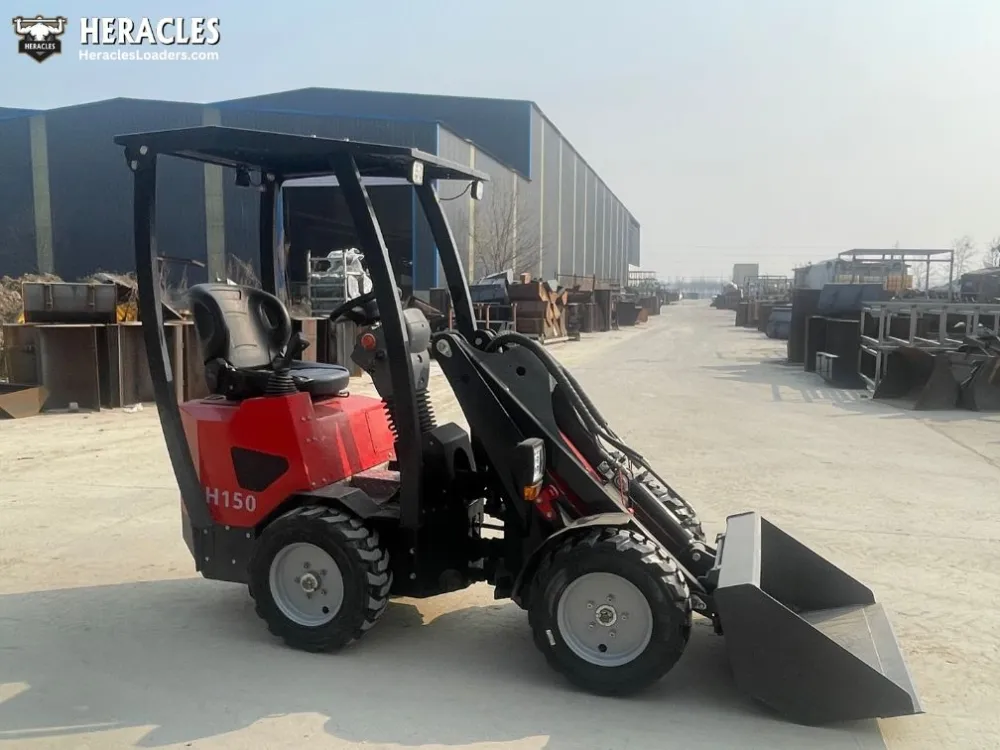

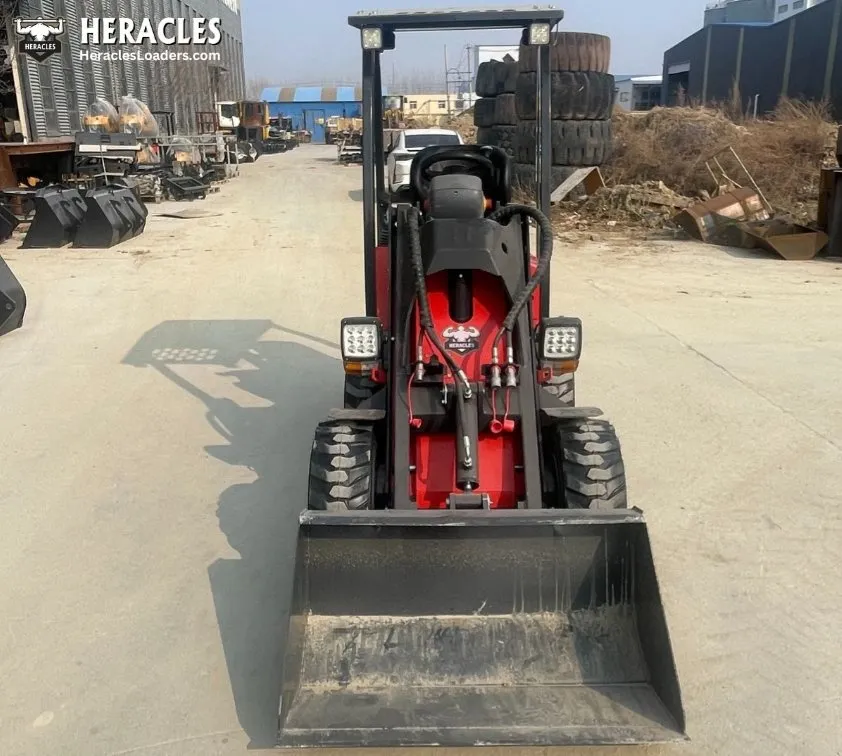

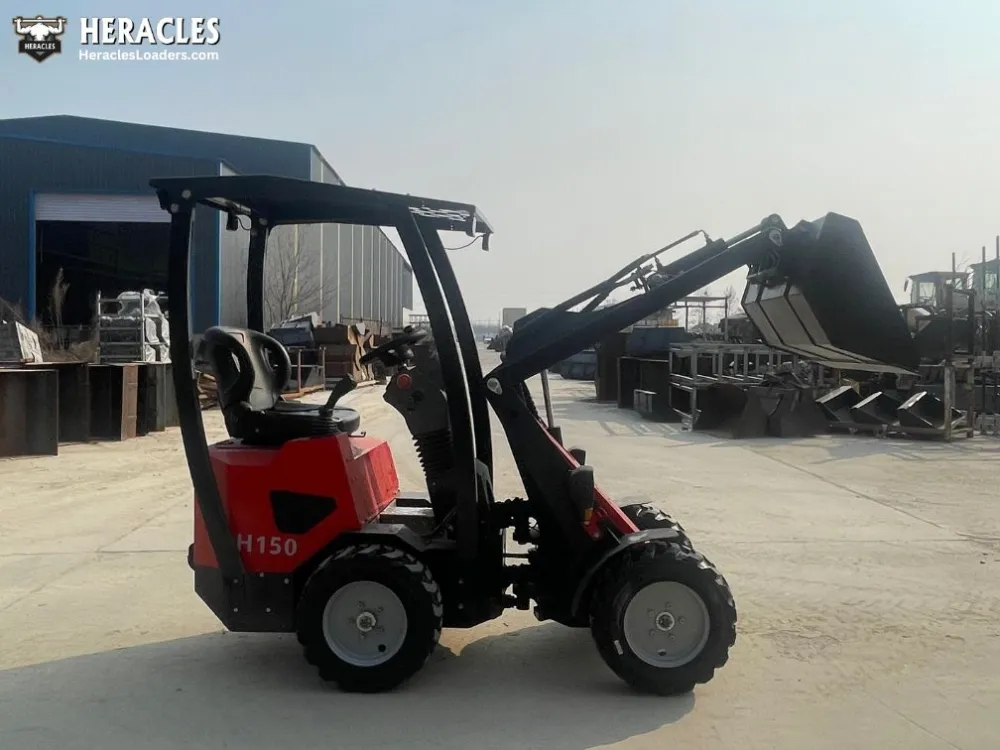

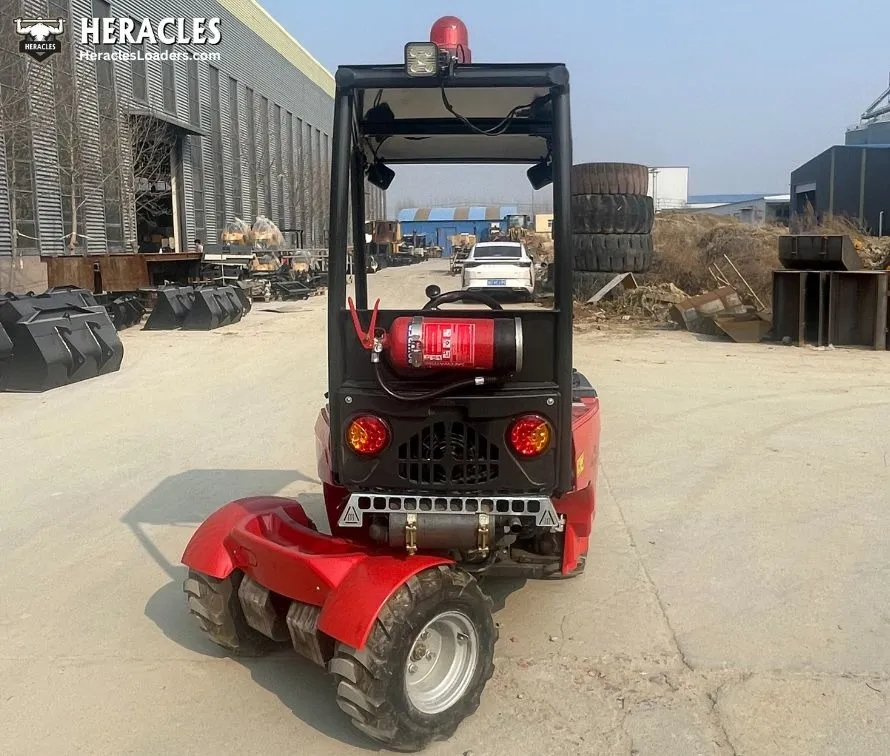

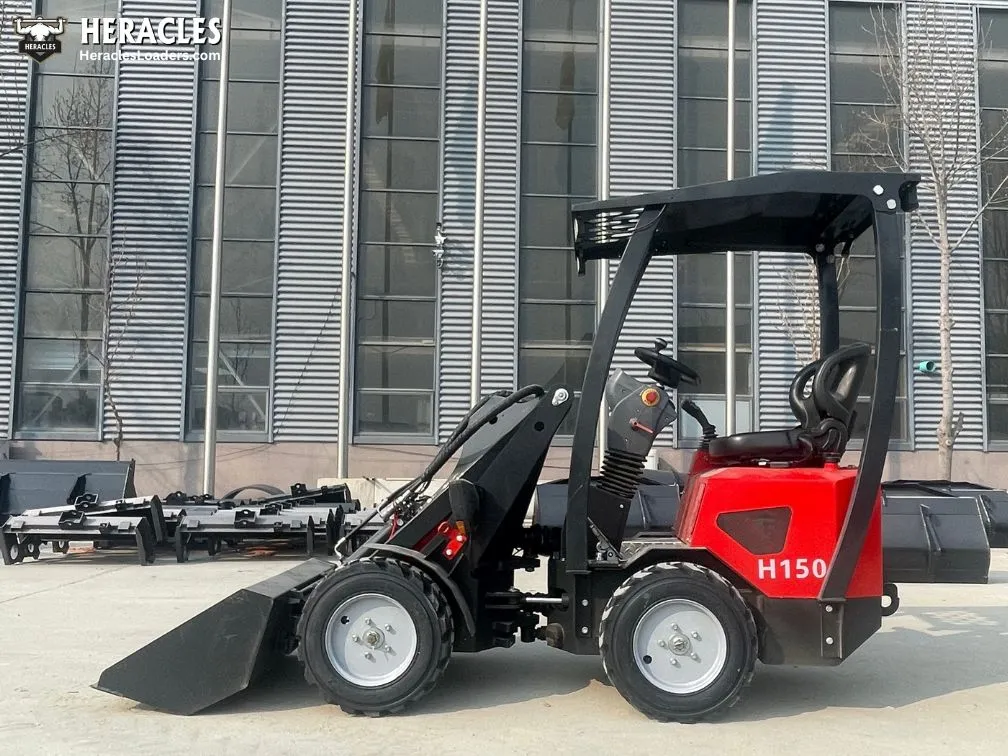

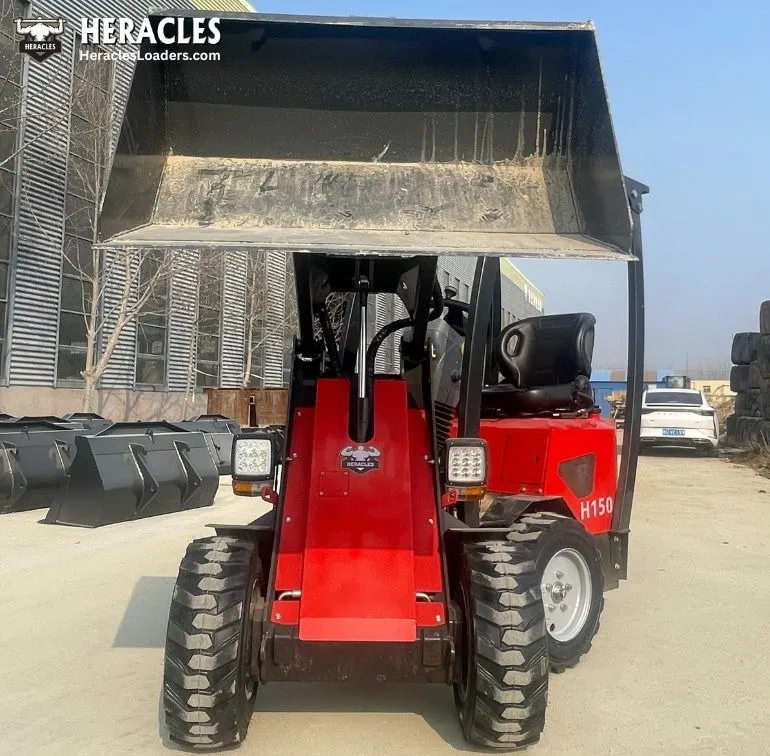

Power meets compact design - The H150 compact wheel loader from our Chinese manufacturing partners combines exceptional power with space-saving dimensions. Available with either a Kubota D902 diesel engine or ZONSEN GB750EFI gasoline engine, both delivering 18.5 kW (24.8 hp) at 3600 rpm, this versatile machine is built for demanding applications.
With a lifting capacity of 350kg and tipping load of 500kg, this compact wheel loader excels in construction, landscaping, agriculture, and industrial material handling. The hydrostatic transmission and 45° steering angle ensure precise control and outstanding maneuverability in tight spaces.
The H150 offers two premium engine choices. The Kubota D902 is a 3-cylinder diesel engine with 900 cc displacement, delivering 56.1 Nm torque at 2600 rpm. The ZONSEN GB750EFI is a 2-cylinder gasoline option with 750 cc displacement. Both engines comply with EU Stage V and EPA Tier 4 Final emission standards, making them suitable for global markets with strict environmental regulations.
With a compact length of 1910 mm and width of just 1031 mm, the H150 can operate in confined spaces where larger equipment cannot access. The 45° steering angle and tight turning radius (853mm inside/1893mm outside) provide exceptional maneuverability for working in crowded job sites while maintaining stability.
The H150 features ergonomic hydrostatic controls that deliver smooth operation and precise handling. The canopy operator's station provides excellent visibility of all working areas. With a travel speed up to 20 km/h, this compact wheel loader moves efficiently between work zones while maintaining excellent stability and control.
