China Compact Excavator Manufacturer
Chinese Excavator - C150 with CE

china compact excavator manufacturer

China Compact Excavator Manufacturer - Specifications    Basic Dimensions
Operate weight 14250 kg 31416 lbs Boom length 4600 mm 181"
Bucket capacity 0.55 m³ Arm length 2520 mm 99"
Engine model ISUZU Upper structure width 2490 mm 98"
Engine power 72.7 kW 97.5 hp Undercarriage width 2495 mm 98"
Swing speed 12.4 rpm Overall height 2740 mm 108"
Ground pressure 42 Kpa Overall length for transportation 7723 mm 304"
Travel speed 2.7/5.0 km/h 1.7/3.1 mph Rear swing radius 2205 mm 87"
Tracking force 126 kn Ground clearance 440 mm 17"
Gradeability 35° (75%) Clearance under counter weight 908 mm 36"
Bucket digging force 99.7 kn Tumbler distance 2930 mm 115"
Arm digging force 80.7 kn Fuel tank capacity 240 L
    Hydraulic tank capacity 175 L
 Additional Specifications
Imported KPM swing motor  Working Range
Imported KPM pump / Japan Kawasaki pump Digging radius 8387 mm 330"
Durable fuel filter and fuel-water separator system Digging depth 5569 mm 219"
Imported KYB travel motor and multi-circuit valve Digging height 8659 mm 341"
Strengthened undercarriage Dumping height 6200 mm 244"
Imported ISUZU engine (Tier 2 emission) Digging radius at ground 8261 mm 325"
Imported hydraulic system Vertical digging depth 4500 mm 177"

  Delivery time: 20 - 30 days
FOB: Qingdao, CHINA
  Guarantee: 12 months

C150 Excavator with CE - Features & Specifications

China Compact Excavator Manufacturer - The C150's unique design, key imported components and low price has made this one of the most demanded 14.2 ton excavators in the market. Its boom, arm, platform and swing system have all been enhanced to perform optimally under the harshest working conditions. Imported components include its KPM swing motor and pump, KYB travel motor, multi-circuit valve and hydraulic system, increasing the C150 excavator's reliability.

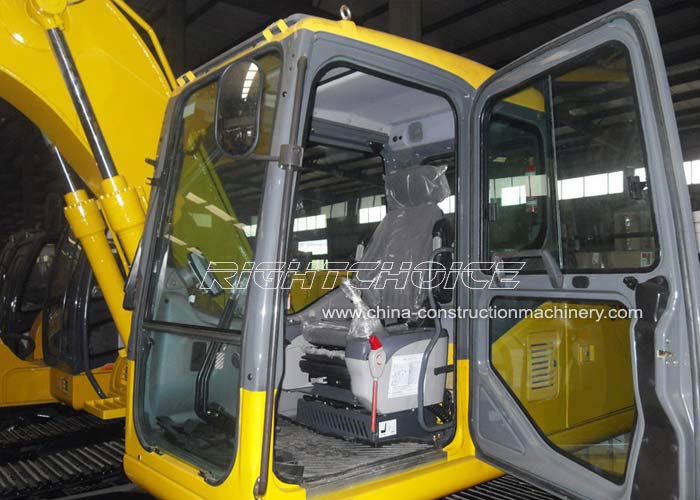

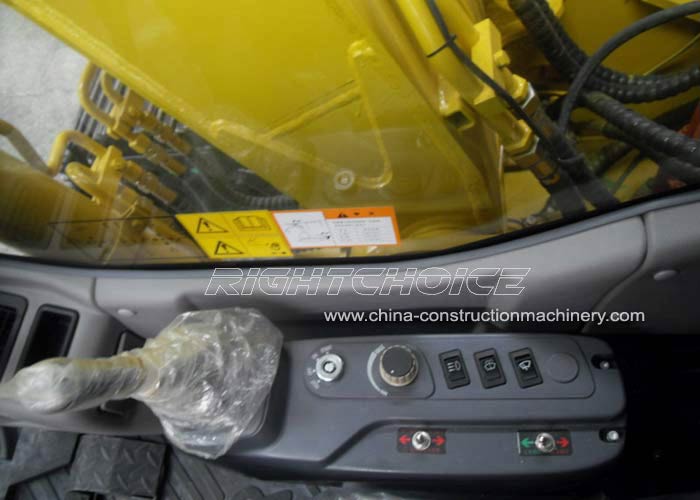

Striving to create the best working conditions for the operator, special attention has been paid when designing the cabin's interior. The result is a safe working space that provides the driver with additional leg-space, improved visibility angles and an increase in comfort thanks to its adjustable suspension seat, AC and high quality joystick controls. The advanced display panel plays an important role in improving and aiding the driver in his day to day work.

1. Engine - ISUZU

The C150 compact excavator has a 72.7 kW Isuzu engine. This high efficiency and low fuel consumption engine helps optimize operational costs by reducing fuel costs.

2. Dimensions & Loader Capacity

3. Photos

chinese excavator

excavator manufacturers

excavators manufacturer companies

china hydraulic excavator

excavator rubber track

excavator buckets for sale

excavator companies


C150 China Compact Excavator Manufacturer - As part of the quality control process all excavators are tested and monitored during 18 hours at the factory before being shipped to customers. This ensures that the users will always receive the equipment in top condition. Please feel free to contact us if you have any questions regarding any of our heavy equipment machinery. You can do so by using the below contact form or by sending us a message.
