China Loader Manufacturer
Wheel Loader RC15 with CE

china loader manufacturer
loader suppliers wheel loader suppliers wheel loader for sale cheap loaders wheel loader manufacturer china construction machinery manufacturer

 RC15 China Loader Manufacturer - Engine    Basic Dimensions
Model* Xinchai 490 (Euro III)
Length 5500 mm 217"
Power 37 kW 50 hp Width 1850 mm 73"
Speed 2650 rpm Height 2580 mm 102"
Torque YJ240 model Ground clearance 260 mm 10"
Fuel consumption <225 g kw.h Dumping height 2650 mm 104"
*Optional: Perkins and Cummins engine Dumping reach 1050 mm 41"

Wheel base 2150 mm 85"
Operating weight 3980 kg 8774 lbs  Additional Specifications
Loading weight 1500 kg 3307 lbs Turning radius 4000 mm 157"
Driving speed 20 km/h 12.4 mph Breakout force 51 Kn
Lifting time of bucket - full load 3.3 sec Tire (larger tire on demand) 12.00-16.5
Falling time of bucket - idle load 2.2 sec Turning angle 35°±1

  Delivery time: 20 - 30 days
FOB Qingdao, CHINA
Minimum Order: 1 unit
  Guarantee: 12 months

China Loader Manufacturer RC15 with CE - Features & Specifications

China Loader Manufacturer - The RC15 wheel loader's great maneuverability allows for optimal performance even on the roughest of terrains. Its spacious cabin ensures both great visibility and comfort, maximizing the operator's productivity.

With an operating weight of 3980 kg, a 0.8 m³ standard bucket volume and 1500 kg loading weight capacity, the RC15 delivers an outstanding performance in a large array of fields. From construction and civil works, to forestry and environmental operations the RC15 is a durable and reliable vehicle.

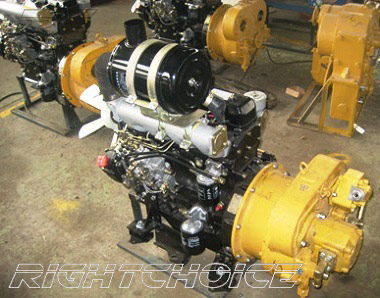

1. Engine - Xinchai 490 (Perkins and Cummins optional)

loader suppliers wheel loader suppliers

A leading brand in the Chinese motor industry, Xinchai engines have proven to be one of the most reliable Chinese engines. This has made it the chosen standard engine model for our RC15 wheel loaders. The Xinchai 490 (Euro III & EPA) is both energy efficient and easy to maintain. The 490 model has a 36.8 kW power at a rated speed of 2650 r/min. We also manufacture the RC15 wheel loader with a variety of engines, including Perkins and Cummins engines. It all comes down to our customers' individual requirements and specifications.

2. Dimensions & Loader Capacity

construction machinery manufacturers

Thanks to our R&D department and to the valuable feedback from our customers, we have developed a wheel loader capable of working with loads of up to 1500 kg (1.5 t) effortlessly. Its 5500 mm full length, 1850 mm width and 2150 mm wheel base together with its energy saving engine makes the RC15 one of the most cost efficient 1.5 ton wheel loaders in the market today.

3. Controls & Drive System

large wheel loaders china construction machinery suppliers

In order to maximize the operator's comfort and productivity the RC15 wheel loader is built with an integrated luxury cabin, E-mark seat and adjustable steering wheel. The mechanical joystick allows the operator to have total control over the wheel loader.

The RC15 uses an YJ1 240 fluid torque converter with a 240 mm circulation diameter and a 36 kW input power at 2300 r/min. The torque is connected to a fixed-spindle power shift gear box with 2 advance and 2 reverse positions. The chosen standard drive pump is a CBN-E316 model and both the front and rear axis have an 820 mounting distance.

Click main 'RC15 Technical Performance Parameters'

4. Photos

china wheel loader manufacturer

end front loader

wheel loader manufacturers

front end loader bucket

china loader manufacturer

Click for more pictures of RC15 compact wheel loader

5. Wheel Loader Attachment

The RC15 wheel loader attachments include: wheel loader quick hitches, 4 in 1 buckets, sifting buckets, flat buckets, mixing buckets, pallet forks, side shift pallet forks, grass forks, grapples, waste grab, log grab, industrial bucket grapples, snow plows, snow blowers, 2 moving side snow blades, augers and sweepers.
