| Heracles H220E Electric Wheel Loader - Specifications | Performance | |||||
| Model | Heracles H220E | Operating weight | 2200 kg | 4850 lbs | ||
| Power Type | Electric | Lifting weight | 800 kg | 1764 lbs | ||
| Battery Capacity | 48V/210Ah | Driving speed | 18 km/h | 11.2 mph | ||
| Working Hours | 6-8 hours | Breakout force | 28 kN | 6294 lbf | ||
| Charge Time | 8-10 hours | Bucket capacity | 0.5 m³ | 0.65 yd³ | ||
| Hydraulic System | Advanced electric | Turning radius | 2200 mm | 87" | ||
| Max. gradeability | 30° | |||||
| Dimensions | ||||||
| Total length | 4200 mm | 165" | Additional Features | |||
| Total width | 1500 mm | 59" | Articulated steering | ±35° | ||
| Height | 2500 mm | 98" | LED working lights | Standard | ||
| Wheelbase | 1800 mm | 71" | Quick coupler | Standard | ||
| Ground clearance | 220 mm | 8.7" | CE certified | Yes | ||
| Delivery time: 20 - 30 days | FOB Qingdao, CHINA | Minimum Order: 1 unit | ||||
| Guarantee: 12 months | + Pictures of H220E | PRICE: Get an exact quotation | ||||

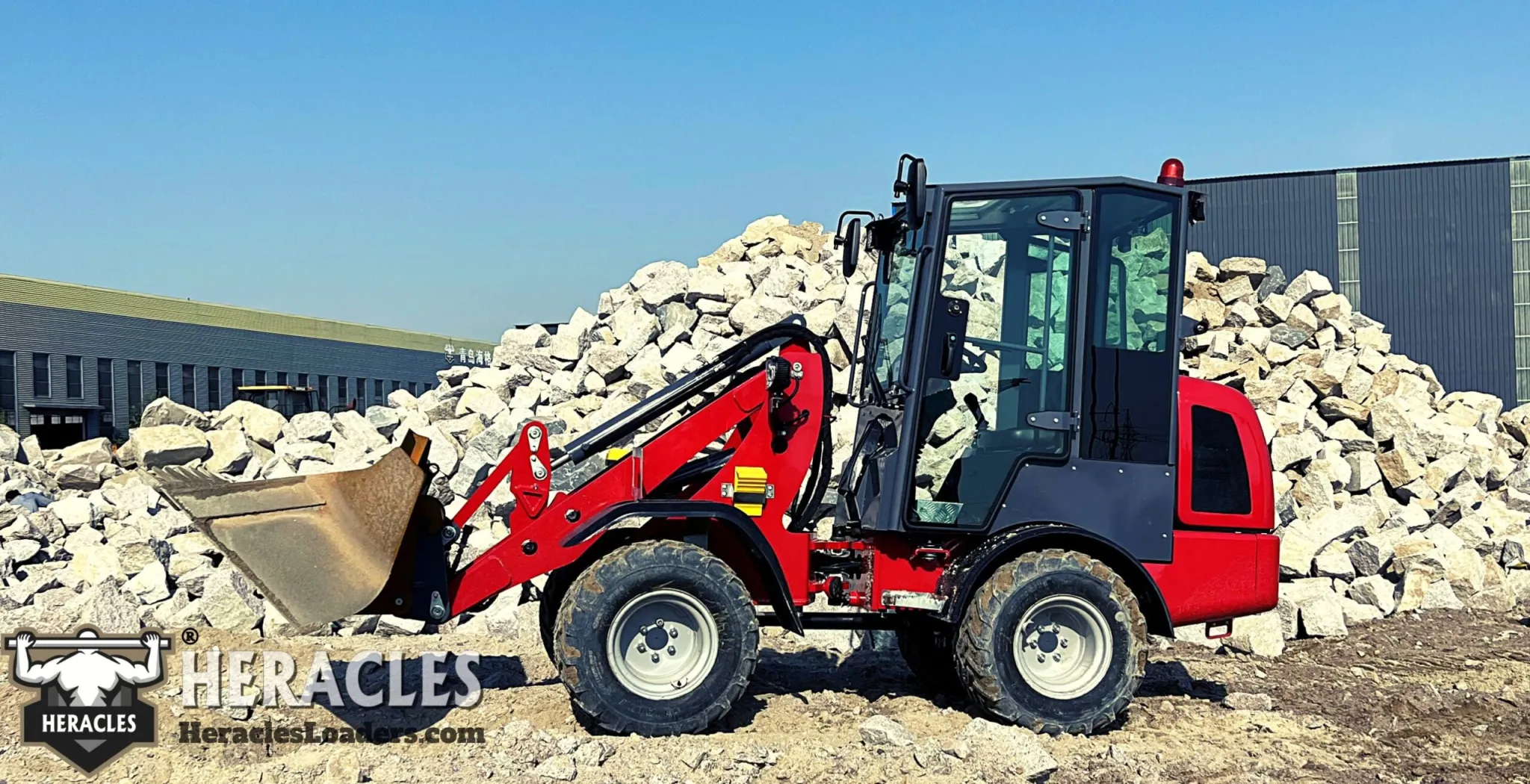

The Heracles H220E electric wheel loader combines powerful performance with eco-friendly operation. Built with high-quality components and advanced electric technology, this loader delivers exceptional breaking force and heavy lifting capabilities while maintaining zero emissions.
With its compact size and articulated joint structure, the H220E is extremely maneuverable, allowing operators to perform tasks effortlessly in tight spaces. The electric powertrain provides smooth operation with speeds up to 18 km/h (11.2 mph) and significantly reduced noise levels compared to diesel models.
The H220E is powered by a 48V/210Ah lithium battery system that provides 6-8 hours of continuous operation on a single charge. The advanced electric motor delivers instant torque for superior performance while eliminating emissions and reducing noise pollution. The regenerative braking system helps extend battery life by recovering energy during deceleration.

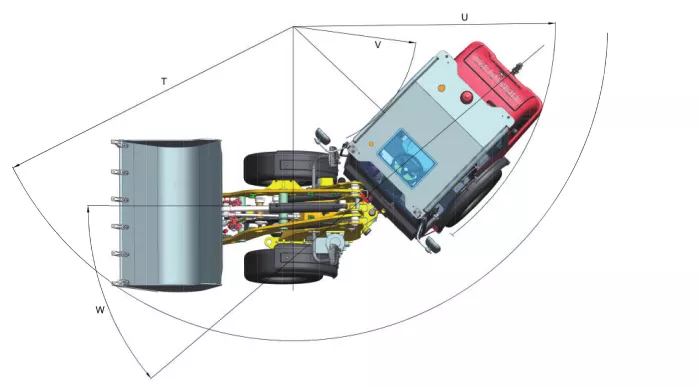

With a total length of 4200 mm and width of 1500 mm, the H220E can navigate tight spaces while maintaining a substantial 800 kg lifting capacity. The compact dimensions combined with ±35° articulated steering make this loader ideal for confined worksites and indoor applications where space is limited.
The H220E features an ergonomic control system with intuitive joystick operation. The advanced electric hydraulic system provides precise control of all loader functions while maintaining energy efficiency. The quick coupler system allows for fast attachment changes, making the loader highly versatile for different applications.

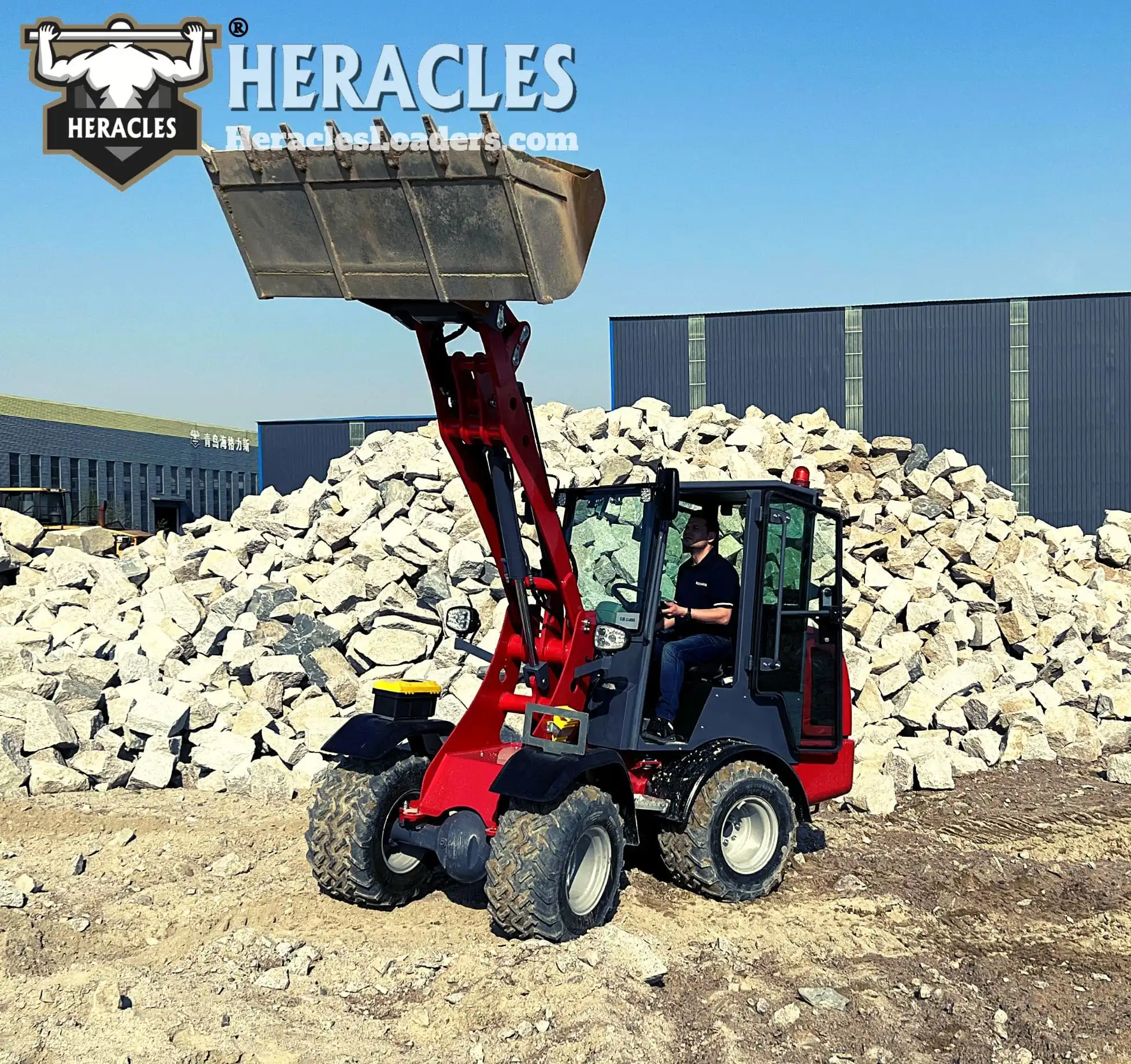

Watch the Heracles H220E electric wheel loader in action, demonstrating its power, maneuverability and quiet operation.
