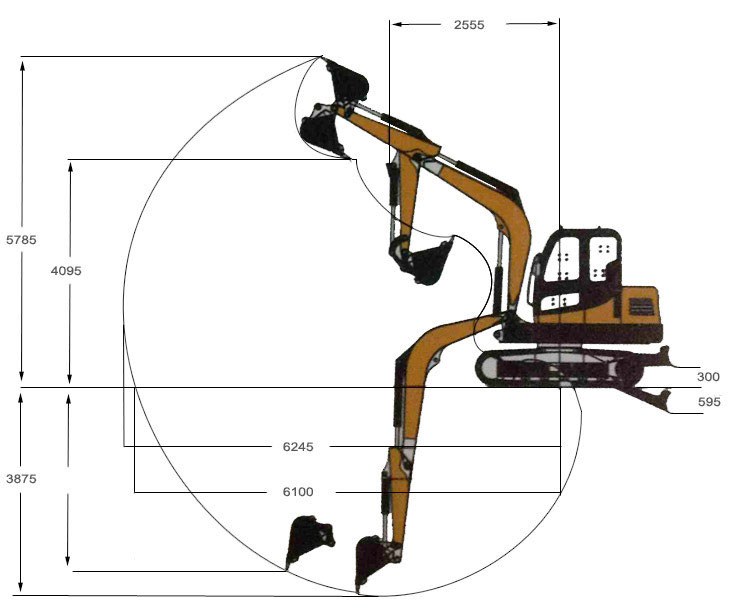

|C65 China Excavators with CE - Specifications||Basic Dimensions|
|Operate weight||6200 kg||13669 lbs||Upper structure witdth||1785 mm||70"|
|Bucket capacity||0.25 m³||Under carriage width||1880 mm||74"|
|Engine model Cummins B3.3-C60 / YANMAR 4TNV94L||Overall height||2650 mm||104"|
|Engine power||45 kW||38 kW||Overall length||6070 mm||239"|
|Swing speed||10 rpm||Rear swing radius||1700 mm||67"|
|Ground pressure||34 Kpa||Ground clearance||400 mm||16"|
|Travel speed||4.0/2.5 km/h||Clearance under counter weight||780 mm||31"|
|Tracking force||49.3 kn|
|Digging radius||6245 mm||246"|
|Additional Specifications||Digging depth||3785 mm||149"|

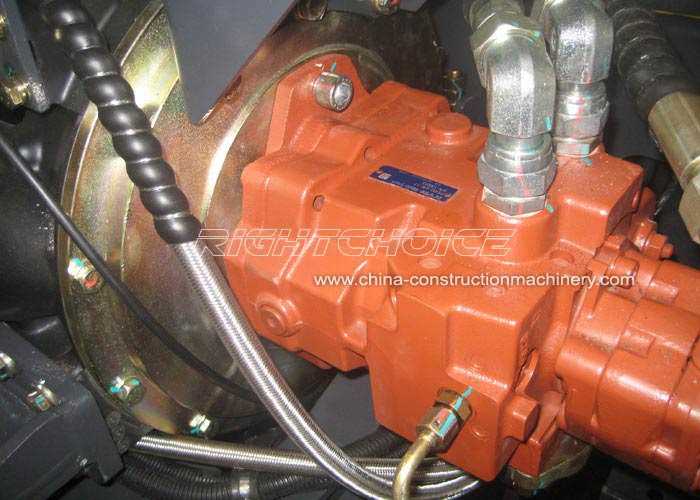

|Japanese KYB main pump||Digging height||5785 mm||228"|
|Japanese KYB valve, tracking motor||Dumping height||4095 mm||161"|
|Korea Doosan Travel Motor||Dozer cutting depth||595 mm||23"|
|Italian valve, pilot control lever||Dozer lifting height||300 mm||12"m|
|Delivery time: 20 - 30 days||
FOB: Qingdao, CHINA
|Warranty: 12 months|

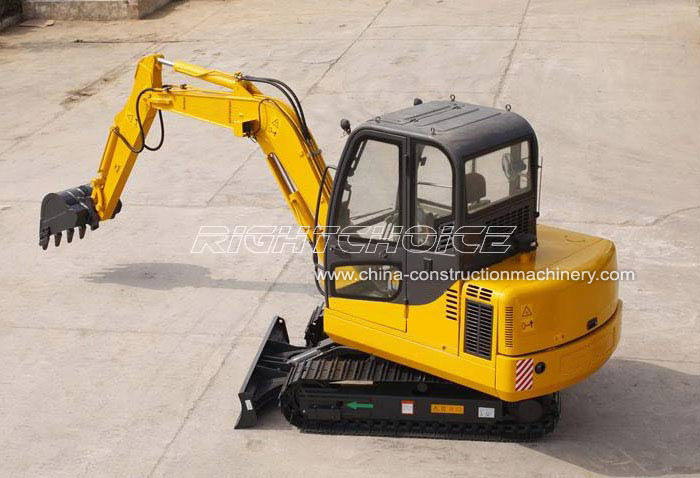

China Excavators - With a 6.2 ton operating weight and a 6 m total length, the C65 excavator is one of our most popular models. Its key imported components include, Japanese made main pumps, tracking motors and its Korean Doosan travel motors. These maximize the machine's output efficiency and reliability.

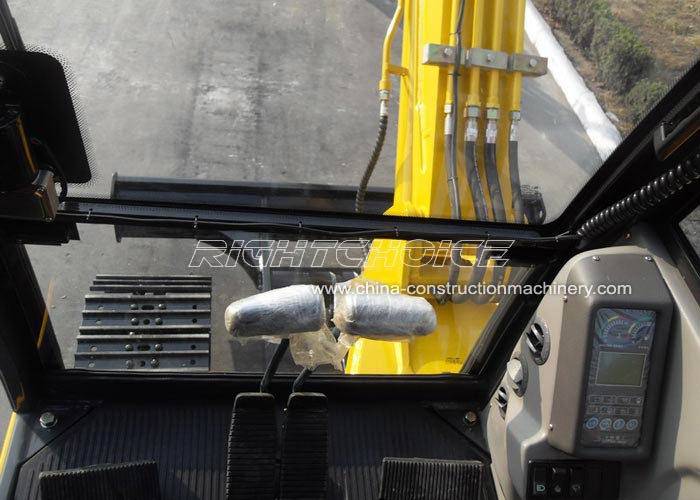

The cabin has been optimally designed to create the most comfortable
working environment possible for the operator. Among the many features
that help minimizes fatigue caused by long driving hours we would like

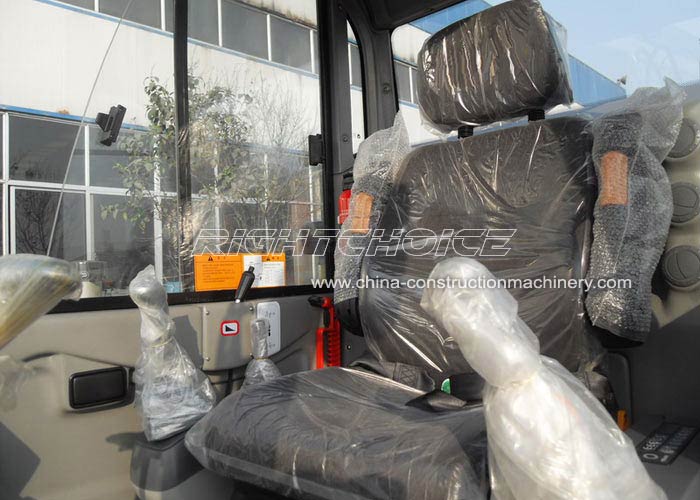

to highlight its height and angle adjustable suspension seat, air conditioning
interior, high sensitivity joystick, as well as its spacious and low
noise cabin interior.

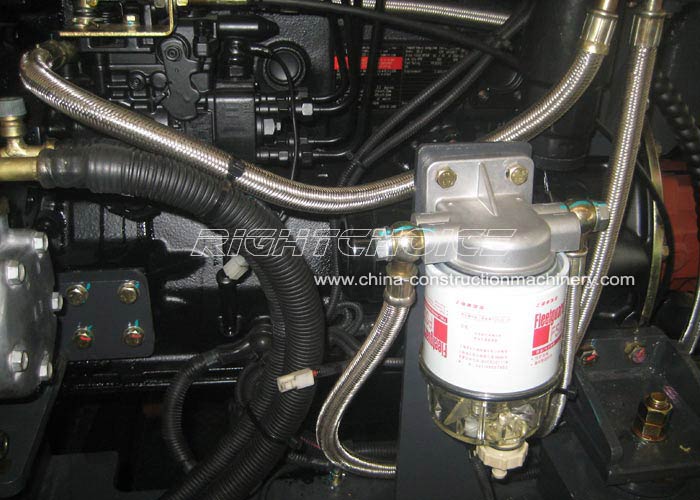

The Cummins B3.3-C60 and Yanmar 4TNV94L turbocharged engines used in the C45 are of extremely high quality and high torque. These allow the C65 excavator to achieve a superior digging force in all environments. The fact that they are both high reliability and low fuel consumption, have made them the best choices for our C65 models.

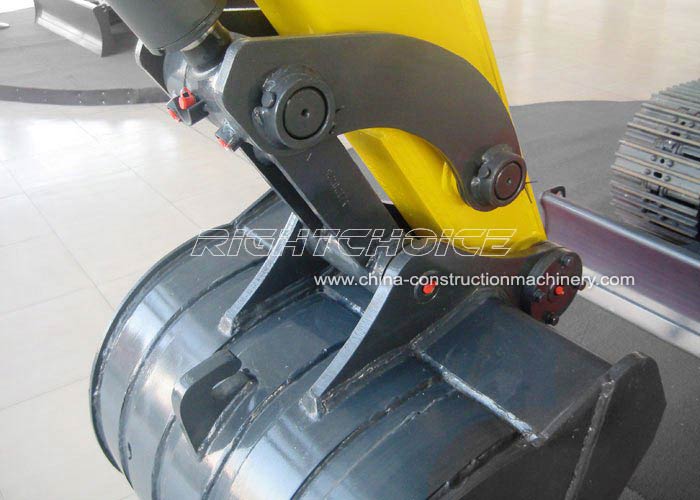

- 310 mm bucket with 2 teeth
- 400 mm bucket with 3 teeth
- 450 mm tilting bucket with 3 teeth
- 700 mm bucket with 5 teeth - standard bucket
- 800 mm tilting bucket without teeth
- Hammer (top type)
Container body size 40HQ: 12000 * 2130 * 2720 (LxWxH) load 2 units in one 40HQ container. FOB: Qingdao, Shandong Province CHINA. For more information or for a quotation on the C65 or on any of our heavy equipment machinery please feel free to send us a message. All of our China excavators are of extremely high quality as all key components are imported from abroad.
