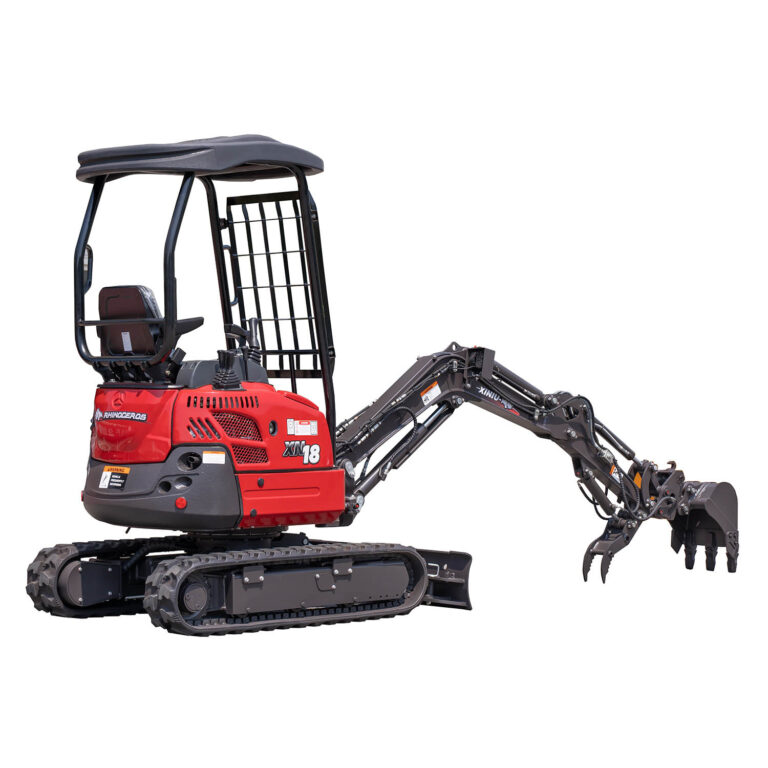

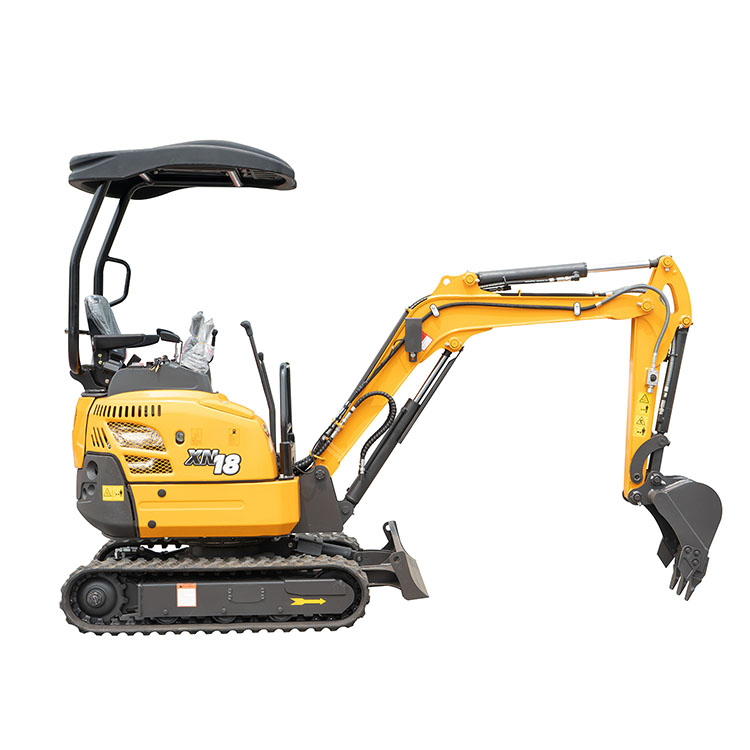

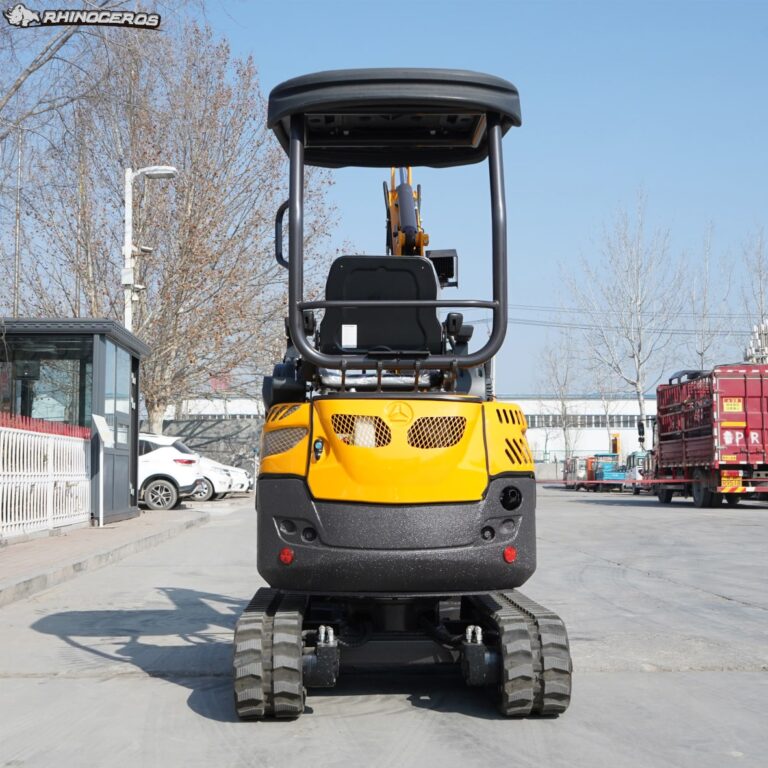

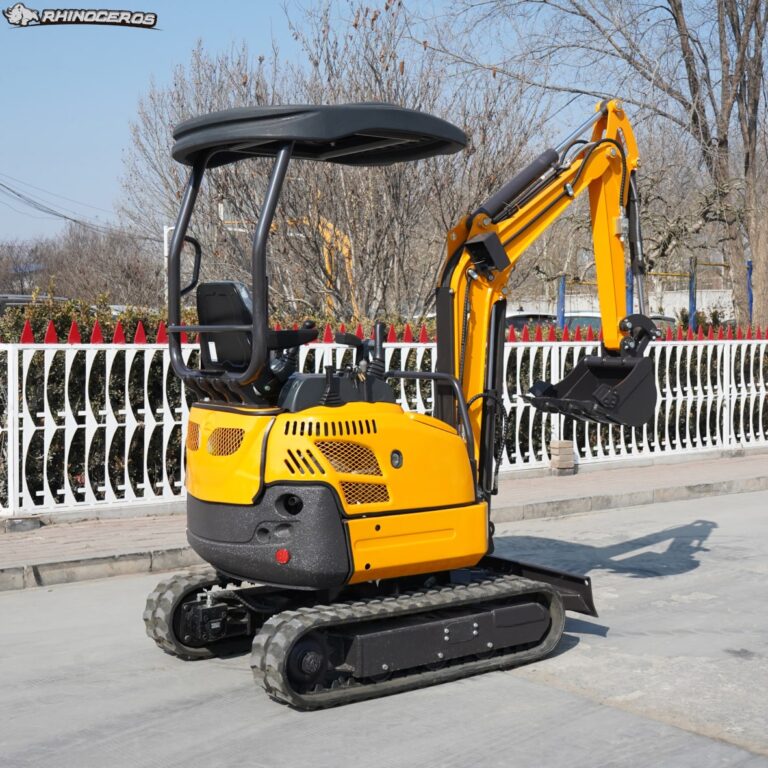

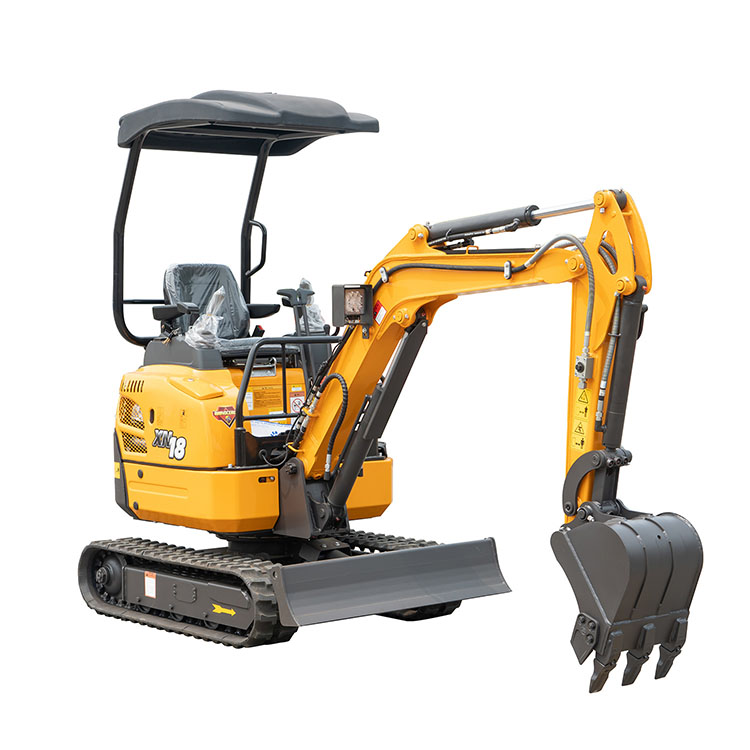

Rhinoceros XN18 China Mini Excavator with CE
Construction Machinery Manufacturers



Rhinoceros XN18 China Mini Excavator - Specifications
Basic Dimensions			Working range
Operating weight	1900 kg / 1840 kg		Max. digging radius	3700 mm	146"
Bucket capacity	0.045 m³		Digging radius on ground	3610 mm	142"
Working device form	Backhoe		Max. digging depth	2150 mm	85"
Wheel base	1230 mm		Vertical digging depth	1740 mm	69"
Track length	1590 mm		Max. digging height	2310 mm	91"
Clearance upper chassis to ground	473 mm		Min. turning radius	1580 mm	62"
Tail turning radius	790 mm		Boom deflection - Left	63°
Chassis width	900 mm (1240 mm)		Boom deflection - Right	58.5°
Track width	230 mm		Dozer blade lift	275 mm	11"
Chassis height	360 mm		Dozer blade depth	180 mm	7"
Seat height	1660 mm		Overall height	2380 mm	94"
Engine
Engine brand	Yanmar / Kubota		Displacement	0.854 L / 0.8898 L
Rated power	11.2 kW / 11.8 kW		Max. torque	51.9 Nm / 51.3 Nm
Performance
Traveling speed	2.2 km/h / 1.7 km/h		Swing speed	11 rpm
Gradeability	30°
Hydraulic System
Pump type	Piston pump		Rated pressure	20 Mpa
Flow rate	39.6 L/min		Hydraulic tank	15.3 L
Fuel tank	18 L
Delivery time: 20 - 30 days			FOB: Qingdao, CHINA
Warranty: 12 months			PRICE: Get an exact quotation for the C18

C18 Excavator with CE - Features & Specifications

China Mini Excavator C18 - Compact, flexible and easy to operate, the C18 excavator is suitable for small spaces and difficult working environments. Flexibility is the core of all operations and for this the C18's hydraulic system, boom, arm and bucket all work together in a fast and efficient manner. The mini excavator's smart operation system maximizes working efficiency and minimizing fuel consumption.

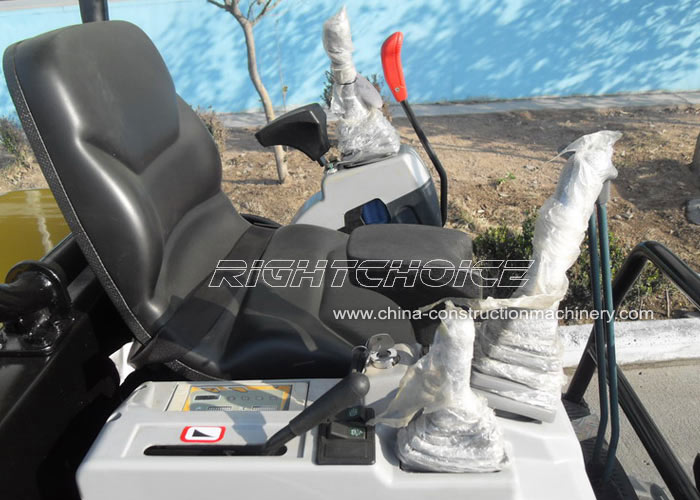

The 2 door cabin model provides an excellent working environment as it maximizes comfort. This low noise environment together with its low vibration seat, LCD monitor and multi-function operation handle provides the best working conditions possible for the operator.

1. Engine - Yanmar 3TNV82

The fully-open engine hood allows for easy maintenance and routine checks. By opening the engine cover the operator can quickly check the engine, clean its air filter and fill cooling water.

2. Dimensions

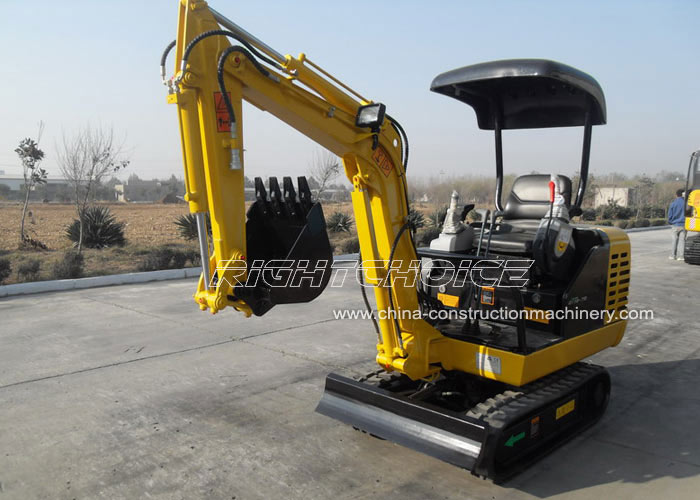

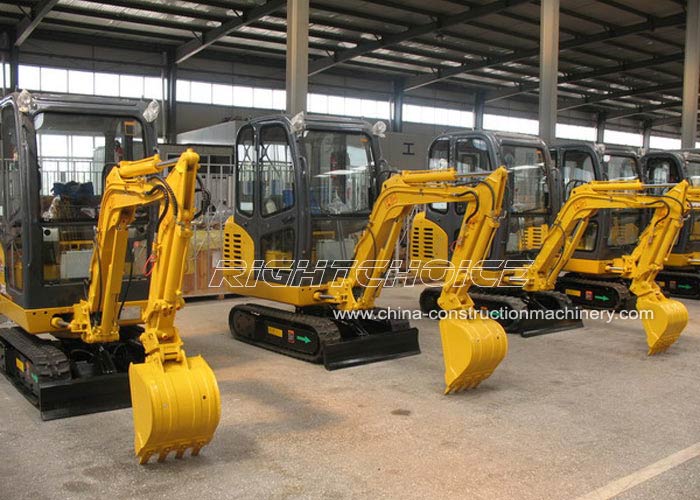

3. Photos

4. Attachment for Mini Excavators

- 300 mm bucket with 3 teeth
- 450 mm bucket with 5 teeth standard bucket
- 800 mm tilting bucket without teeth
- 1000 mm bucket without teeth
- 1000 mm tilting bucket without teeth
- Hammer (top type)

5. Loading

Container body size 20GP: 5690 * 2130 * 2180 (LxWxH) load four units in one 20GP container. FOB: Qingdao, Shandong Province, CHINA

Please feel free to contact us for a quotation on the C18 China Mini Excavator or on any of our attachment for mini excavators. One of our friendly staff members will answer all of your queries within minutes.
