Chinese Excavator - C85 with CE
China Heavy Machinery Manufacturers



C85 Chinese Excavator - Specifications				Basic Dimensions
Operate weight	8200 kg	18077 lbs		Upper structure width	2190 mm	86"
Bucket capacity	0.34 m³			Undercarriage width	2100 mm	83"
Engine model                Cummins B3.3 / Yanmar 4TNV98T				Overall height	2600 mm	102"
Engine power	60 kW / 55kW	82hp / 75hp		Overall length for transportation	6430 mm	253"
Swing speed	11 rpm			Rear swing radius	1835 mm	72"
Ground pressure	39 Kpa			Ground clearance	370 mm	15"
Travel speed	5.3/3.6 km/h	3.3/ 2.2 mph		Clearance under counter weight	785 mm	31"
Tracking force	70.8 kn

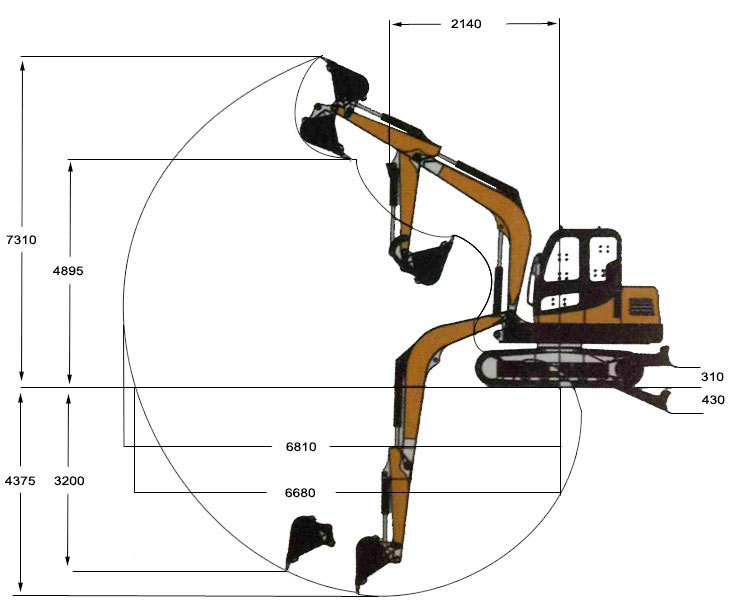

Gradeability	30°			Working Range
				Digging radius	6810 mm	268"
Additional Specifications				Digging depth	4375 mm	172"
Japanese KYB main pump				Digging height	7310 mm	288"
Japanese KYB valve, tracking motor				Dumping height	4895 mm	193"
Jeil Travel Motor				Dozer cutting depth	430 mm	17"
Italian valve, pilot control lever				Dozer lifting height	310 mm	12"
Delivery time: 20 - 30 days				FOB: Qingdao, CHINA
Guarantee: 12 months				PRICE: Get an exact quotation for the C85

C85 Excavator with CE - Features & Specifications

Chinese Excavator C85 with CE - The C85 excavator has been developed to maximize power and stability. This has been made possible by optimizing the arm, boom and the body's design and arrangements, together with the use of key imported components like its hydraulic pump, valve, travel motor and engine. The result, an extremely durable and efficient excavator with a strong digging force.

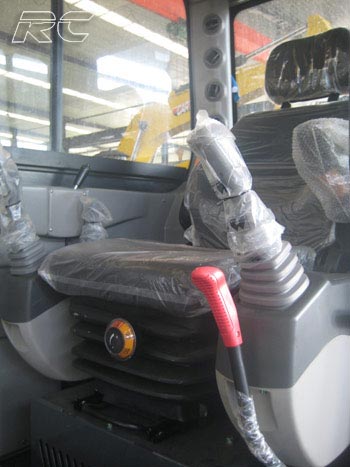

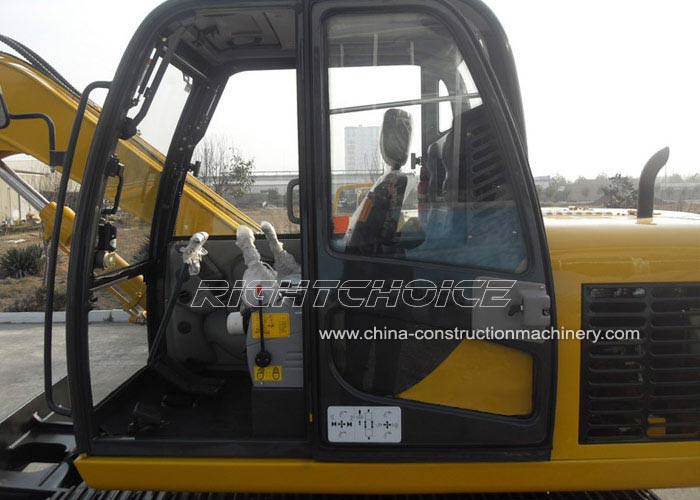

The C85’s luxury cabin maximizes operational performance by providing the operator with an outstanding working environment. Its low noise, low vibration interior together with its multifunction dashboard and high sensitivity joystick are only some of the advanced features used in the C85 excavator. These have made the C85 excavator one of the most easy to operate and popular 8 ton excavators in the market place today.

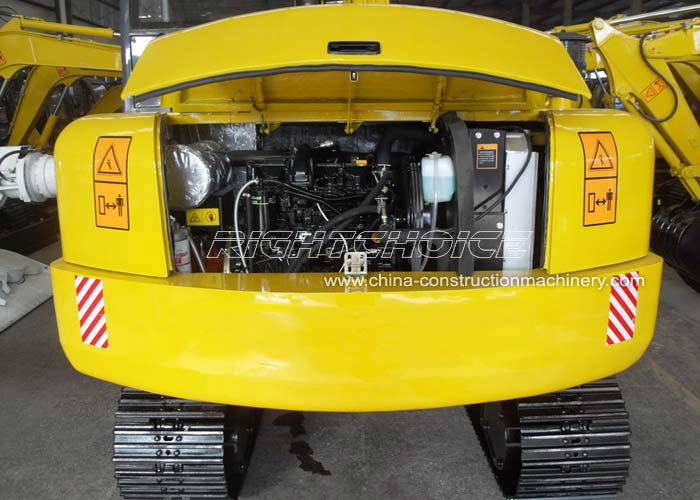

1. Engine - Cummins B3.3 / Yanmar 4TNV98T

A guarantee of high performance the C85 is manufactured with both Cummins B3.3 and Yanmar 4TNV98T engines. With 82 hp (60 kW) and 75 hp (55 kW) respectively, these two highly efficient engines are both powerful and easy to maintain.

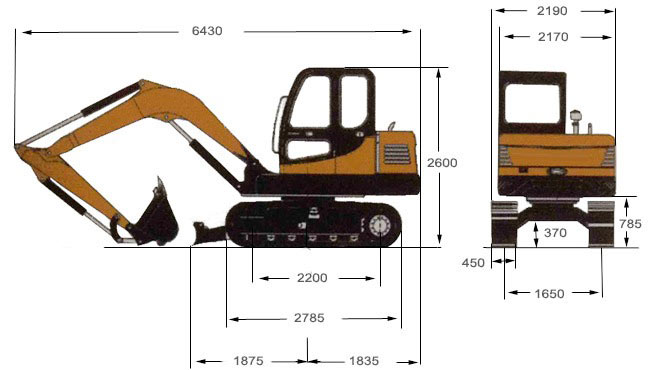

2. Dimensions & Loader Capacity

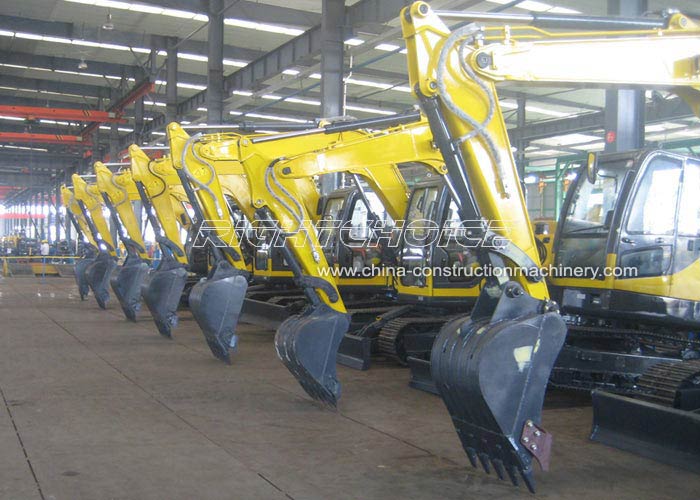

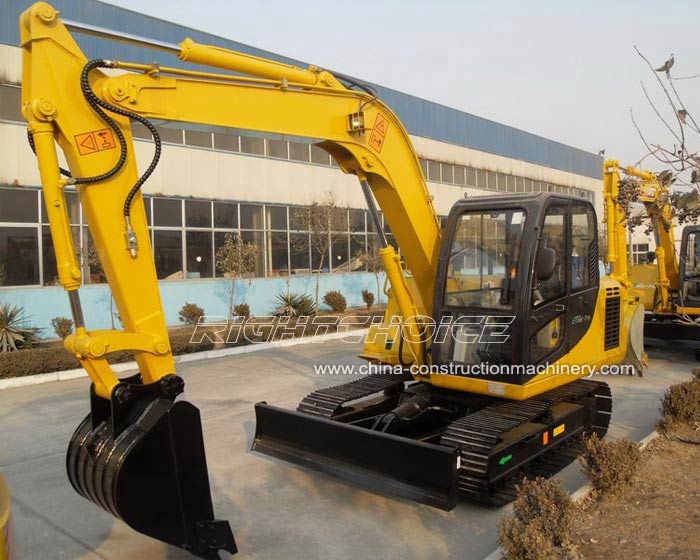

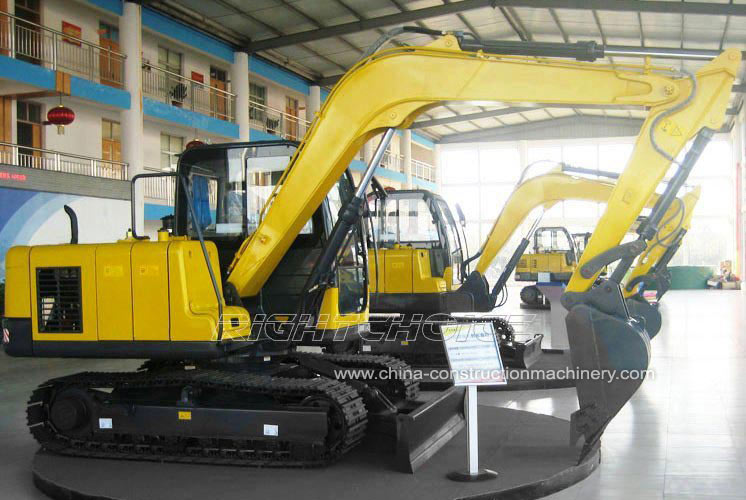

3. Photos

4. Attachments excavators

- 300 mm bucket with 2 teeth
- 420 mm bucket with 2 teeth
- 470 mm bucket with 3 teeth
- 780 mm bucket with 5 teeth standard bucket
- 860 mm tilting bucket with 5 teeth
- 1050 mm tilting bucket with 6 teeth
- 1100 mm tilting bucket without teeth

5. Loading

Container body size 40HQ: 12000 * 2130 * 2720 (LxWxH) load 2 units in one 40HQ container. Please send us a message for a quotation on the C85 excavator or on any of our high quality Chinese excavator models.
